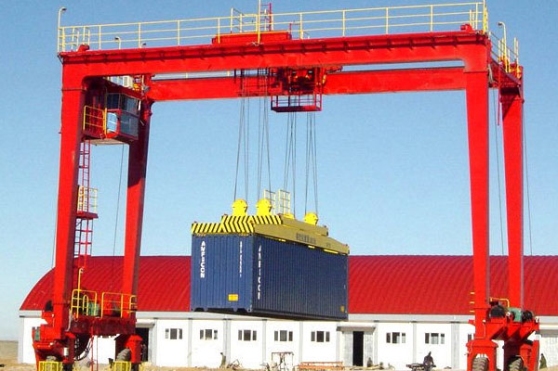

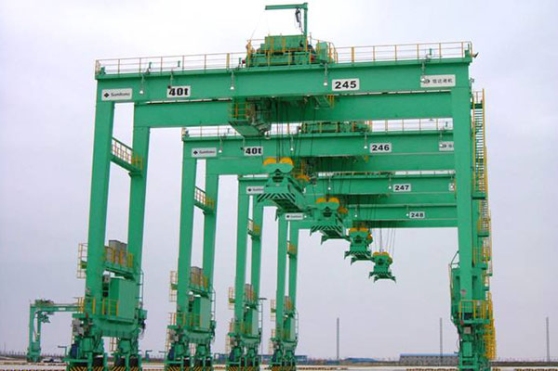

Rubber Tire Container Gantry Crane(RTG)

Capacity:10~100T
Span:16~40m
Lifting height: accoding to customers' demandm
Lifting speed: 4.62~9.4m/min

Overview

Container rubber tire gantry crane with hooks is applied outside warehouse or railway sideways to do common lifting and unloading works. This kind of crane is composed of bridge, supporting legs, crane travelling organ, trolley with strong lifting winch, electric equipment and control system. As its heavy duty design, it can be widely used in all kinds of industrial field.

Installation Service

1. Quality problems of products sold by our company will be solved as per the “three guarantees” system of our company by the “three guarantees” service team;

2. Related personnel will be sent to the site immediately after receiving quality complaints (by call, letter or oral notice) from clients;

3. Personnel involved in after-sales service shall be serious and considerate in handling the problem to make clients care-free;

4. In addition to solve quality problems, personnel involved in after-sales service shall train clients, answer their technical inquiries and related questions free of charge;

5. Related cost for products with quality problem will be shouldered by our company. Our company charges for quality problems caused by clients (or problems after the warranty term), but the charge will not be higher than the expense (or cost);

Features

Type			MG
Capacity(t)		Main	10	16	20	32	50		75	100
		Aux		3.2	5	5	10		20	20
Span			18; 22; 26; 30; 35				30,35		40	16
Hoisting height(m)	Main		11	12	12	12	22		22	17.5
	Aux			16	14	14	24
Hoisting speed (m/min)	Main		7.4	9.4	5.8	7.7	7.68		6.25	4.62
	Aux			11.2	12.6	15	19.8		9.28	9.28
Hoisting motor	Main		YZR200L-8/15	YAR225M-8/22	YAR250M1-8/30	YAR280M-8/55	YZR315S-10/63		YAR315M-10/85	YZR315M-10/85
	Aux			YZR160L-6/11	YZR160L-6/15	YZR180L-6/15	YZR250M-8/35		YZR250M1-8/35	YZR250M1-8/35
Crane Rail Recommended			43kg/m 43kg/m 50kg/m Qu80					Qu80
Power source			Three phase AC 380V 50Hz

1. Quality problems of products sold by our company will be solved as per the “three guarantees” system of our company by the “three guarantees” service team;

2. Related personnel will be sent to the site immediately after receiving quality complaints (by call, letter or oral notice) from clients;

3. Personnel involved in after-sales service shall be serious and considerate in handling the problem to make clients care-free;

4. In addition to solve quality problems, personnel involved in after-sales service shall train clients, answer their technical inquiries and related questions free of charge;

Type			MG
Capacity(t)		Main	10	16	20	32	50		75	100
		Aux		3.2	5	5	10		20	20
Span			18; 22; 26; 30; 35				30,35		40	16
Hoisting height(m)	Main		11	12	12	12	22		22	17.5
	Aux			16	14	14	24
Hoisting speed (m/min)	Main		7.4	9.4	5.8	7.7	7.68		6.25	4.62
	Aux			11.2	12.6	15	19.8		9.28	9.28
Hoisting motor	Main		YZR200L-8/15	YAR225M-8/22	YAR250M1-8/30	YAR280M-8/55	YZR315S-10/63		YAR315M-10/85	YZR315M-10/85
	Aux			YZR160L-6/11	YZR160L-6/15	YZR180L-6/15	YZR250M-8/35		YZR250M1-8/35	YZR250M1-8/35
Crane Rail Recommended			43kg/m 43kg/m 50kg/m Qu80					Qu80
Power source			Three phase AC 380V 50Hz
