Single Girder Gantry Crane

  • Capacity:3,5,10,16t
  • Span:12,16,20,24,30m
  • Lifting height:6-9m

Inquiry Contact Us

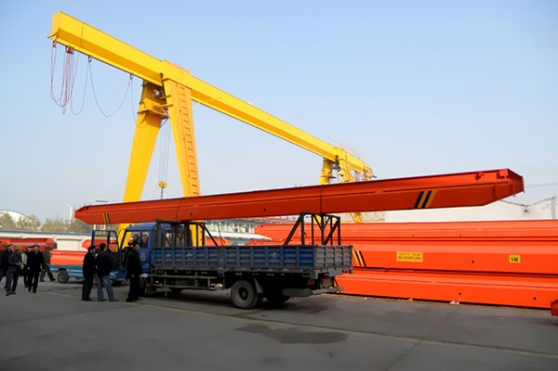

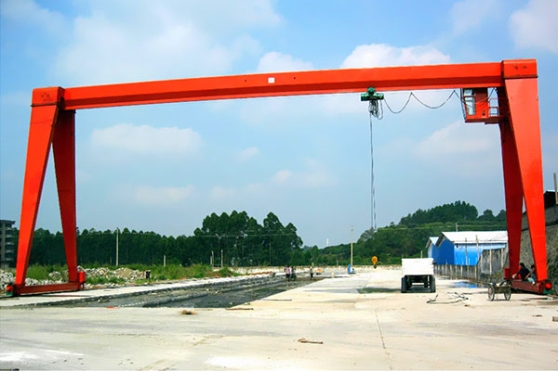

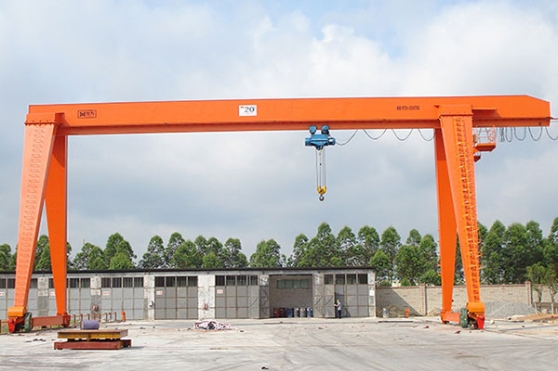

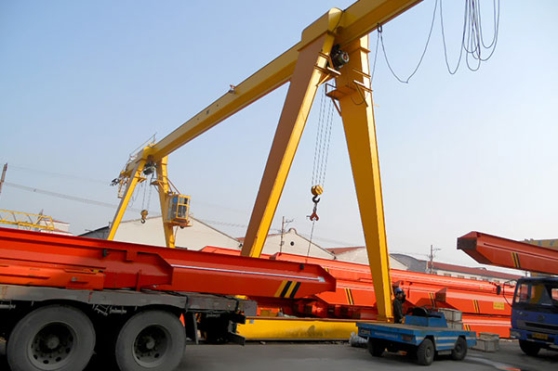

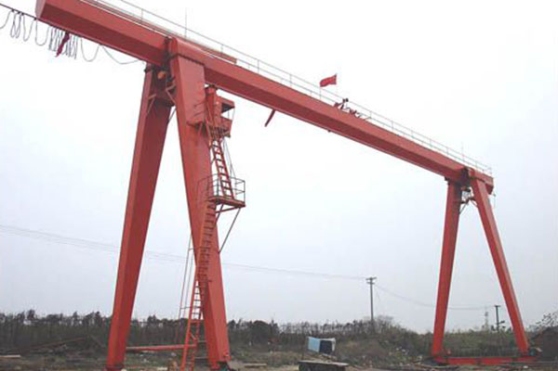

MH model single girder gantry crane is a kind of outdoor cranes equipped with CD/MD type electric hoists and widely used indoor and outdoor such as workshop, warehouse, store yard, railway and so on. This kind of crane is composed of main beam, support legs, ground beam, crane travelling mechanism and crane traveling mechanism.


About the main beam and support leg, there are two types: box type and truss type, box type is good techniques and easy fabrication, truss type is light in dead weight and strong in wind resistance. . The complete machine features light dead weight, simple structure and easy installation and maintenance and widely used.

If you will use it in the environment with inflammable, explosive and corrosive gas, please let me know, we will equip the crane with corresponding measures.

There are three control way for your chosen: ground handle, wireless remote control and cab.

1. Quality problems of products sold by our company will be solved as per the “three guarantees” system of our company by the “three guarantees” service team;

2. Related personnel will be sent to the site immediately after receiving quality complaints (by call, letter or oral notice) from clients;

3. Personnel involved in after-sales service shall be serious and considerate in handling the problem to make clients care-free;

4. In addition to solve quality problems, personnel involved in after-sales service shall train clients, answer their technical inquiries and related questions free of charge;


5. Related cost for products with quality problem will be shouldered by our company. Our company charges for quality problems caused by clients (or problems after the warranty term), but the charge will not be higher than the expense (or cost);

Capacity

t

3

5

10

16

Span

S(m)

12

16

20

24

12

16

20

24

30

12

16

20

24

30

12

16

20

24

30

Lifting height

m

6~9

6~9

9

6~9

9

6~9

9

Lifting speed

m/min

8 8/0.8

8 8/0.8

7 7/0.7

3.5 3.5/0.35

Trolley speed

m/min

20

20

20

20

Crane speed

m/min

20

20

20

20

Work duty

A3-A5

A3-A5

A3-A5

A3-A5

Track

P34 P38

P24 P38

P38 P43

P38 P43
