Casting Overhead Crane

  • Capacity:32/5,50/10T
  • Span:10.5~31.5m
  • Lifting height: 16,18m
  • Lifting speed: 15.6m/min

Inquiry Contact Us

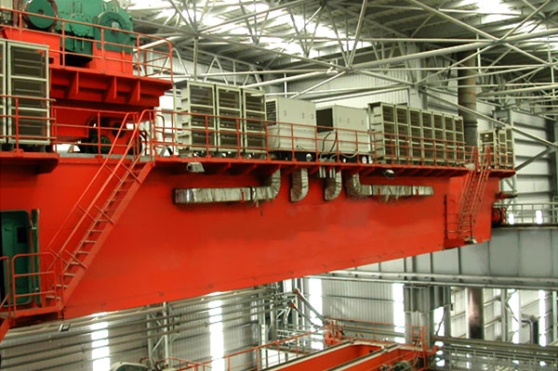

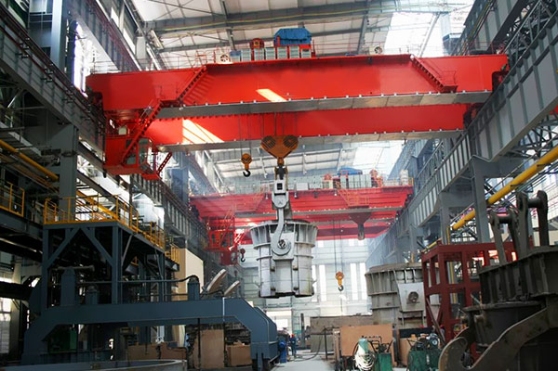

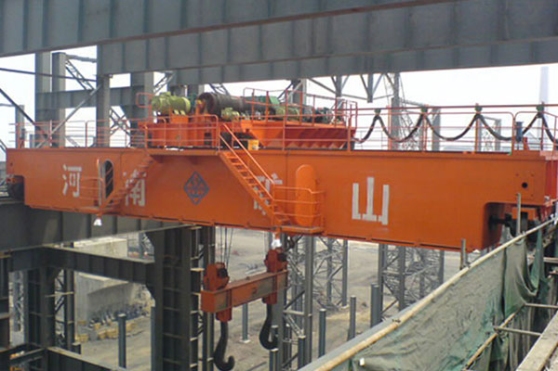

Casting crane is the main equipment of steel making and continuous casting process. Mainly used for lifting and transportation of liquid steel ladle.

Overall structure can be divided into: double girder double-track, four beams and four-track, four-beam rail and other types. The first two are generally used for large tonnage crane, and the third is generally used for large tonnage of foundry crane.

Casting crane company design and manufacture of advanced technology, novel structure, safe, reliable, economical and durable, and easy maintenance.

In addition, our casting crane offers the following features to be selected: 1.Rotary spreader, 2.The gantry hook from the variable. 3. Load weighing and display.

Henan Mine Crane Co,.LTD crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint.

Henan Mine Crane Co,.LTD crane has a lot of honor for overhead crane certification for different overhead crane types.

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

Capacity

T

32/5,50/10

Span

m

10.5

13.5

16.5

19.5

22.5

25.5

28.5

31.5

Lifting height

m

16/18

Lifting speed

m/min

15.6

Trolley travelling speed

m/min

3.36-33.6,2.9-29

Crane travelling speed

m/min

92.7

93.7

86.5

Total weight

kg

15406

17290

20020

21724

24213

28579

31970

35389

Max. Wheel load

KN

104

111

120

125

132

144

152

162

Rail recommended

Model

43kg/m

Total motor power

kw

27.8

31.8

Main dimension (mm)

Span(m)

10.5

13.5

16.5

19.5

22.5

25.5

28.5

31.5

Rail top to crane top

H

1750

1840

Rail top to hook center

H4

55

5

Crane base distance

W

5140

5334

5940

Crane width

B

3450

4400

Trolley rail distance

K

1400

Hook left limitation

S1

800

Hook right limitation

S2

1250
