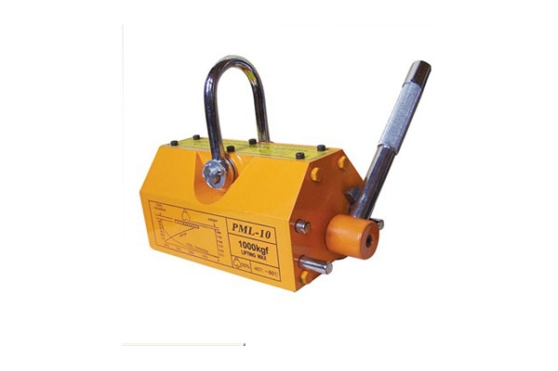

Hand Control Magnetic Chuck
- lifting capacity: 0.1~5T
- Test Max Pull Off Force: 0.35~17T
- Weight: 3~450kg
Permanent magnetic lifter use new type and high performance Nd-Fe-B magneticmaterial. It is characterized by its smaller and lighter weight. Powerful lifting effort and few of residual magnetism, easy and safe to operate, without electricity in operation, long-period effort. They have been used widely tolift and transport the steel and iron.
|
Model |
Rated lifting capacity(kg) |
Shape size(mm) |
Test Max Pull Off Force(kg) |
Weight (kg) |
|||
|
L |
B |
H |
R |
||||
|
QZ1-0.1 |
100 |
100 |
82 |
82 |
126 |
350 |
3 |
|
QZ1-0.3 |
300 |
180 |
100 |
120 |
150 |
1050 |
12 |
|
QZ1-0.6 |
600 |
246 |
145 |
142 |
236 |
2100 |
28 |
|
QZ1-1 |
1000 |
280 |
165 |
164 |
284 |
3500 |
48 |
|
QZ1-2 |
2000 |
370 |
210 |
205 |
426 |
7500 |
90 |
|
QZ1-3 |
3000 |
458 |
286 |
264 |
521 |
10000 |
190 |
|
QZ1-5 |
5000 |
550 |
330 |
310 |
720 |
17000 |
420 |
